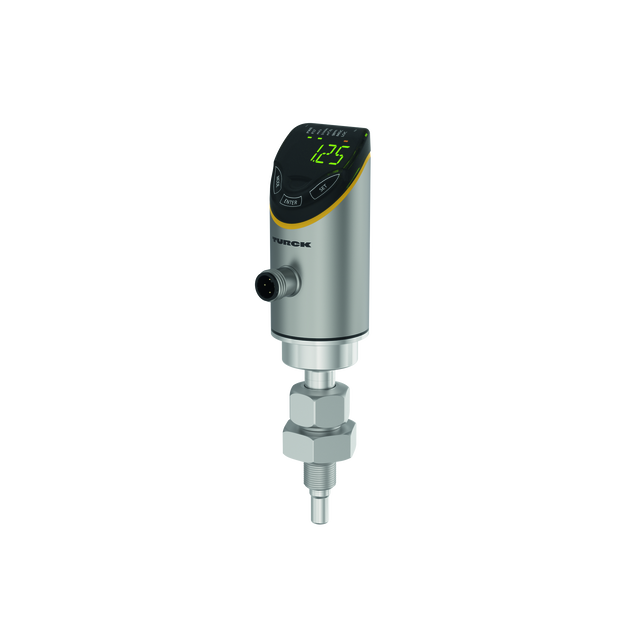

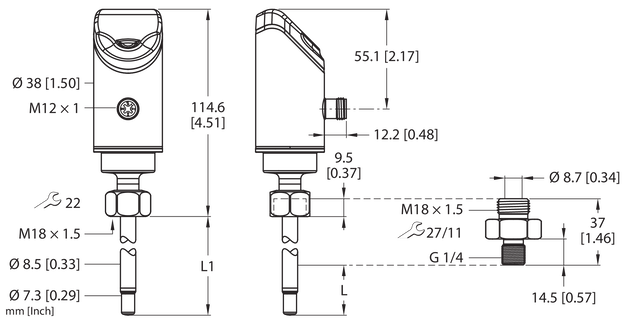

Product FS501-L-04-LI2UPN8-H1141
Flow meter for liquids
With integrated evaluation electronics and display
Calorimetric measuring principle — immersion design
Order number: 100053069- Screw-in adapter with process connection G1/4″ male thread included in delivery
- M18 × 1.5 female to G1/4″ male thread
- Electronics housing material/media-contacting 1.4404 (316L)/1.4571 (316Ti)
- Immersion depth 16.9 mm
- 4-digit 12-segment display, rotatable by 180°
- Flow measurement of liquid media
- Flow speed and flow volume
Pipe internal diameter adjustable from 15…250 mm
- Setting via touchpads and IO-Link
- Totalizer and teach functions via IO-Link
- Protection classes IP66, IP67 and IP69K
17…33 VDC
NO/NC, PNP/NPN output
Analog output (current/voltage)
IO-Link SSP 4.3.2
M12 × 1 connector
General data
| eCl@ss-Code (V5.1.4): | 27200403 -/- Durchflussmesser(Masse-, thermisch) |
Technical Data
| Function | Flow rate measurement |
| Design | With display (integrated probe) |
| Process connection | G 1/4'' male thread |
| Bar length (L1) | 45 mm |
| Immersion depth L | 16.9 mm |
| Medium | liquids |
| Output function | NO/NC programmable, PNP/NPN |
| Communication protocol | IO-Link |
| Electrical connection | Connector, M12 x 1 |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5 |
| Medium temperature | 0…+80 °C |
| Ambient temperature | -40…+80 °C |
| Protection class | IP66/IP67/IP69K |
| Approvals | CE, cULus |
