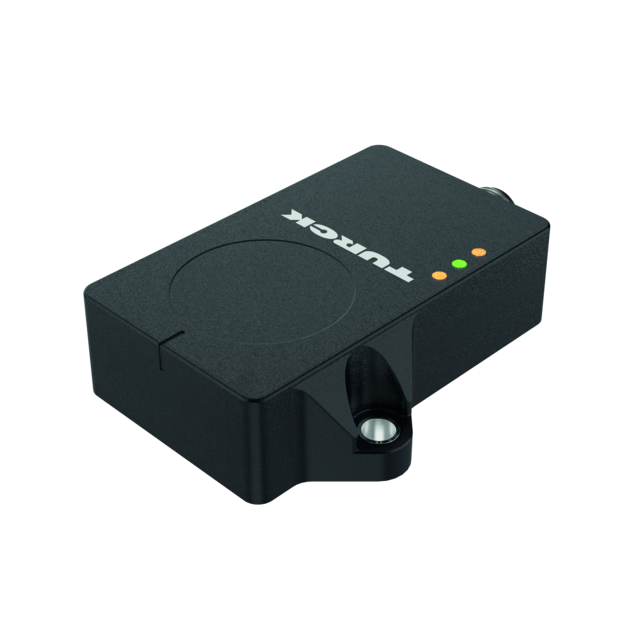

Product CMVT-QR20-IOLX3-H1141/3GD
Vibration and temperature sensor
For condition monitoring with IO-Link
Order number: 100051195- Rectangular, plastic, Ultem
- Status displayed via LED
- Acceleration and speed output RMS or peak to peak of the vibration
- Acceleration measuring range 16 g
- Detection over three axes
- Temperature measuring range -40 °C…+85 °C
- High protection class IP68/IP69K
- ATEX category II 3 G, Ex zone 2
- ATEX category II 3 D, Ex zone 22
- 18…30 VDC, communication via IO-Link
- 10…30 VDC, SIO mode PNP/NPN switching outputs
- Connector, M12 × 1, 4-pin
General data
| eCl@ss-Code (V5.1.4): | 27279090 -/- Sensorik (sonstige, nicht klassifiziert) |
Technical Data
| Function | Vibration/temperature sensor |
| Communication protocol | IO-Link |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, Ultem |
| Ambient temperature | -40…+85 °C |
| Protection class | IP68/IP69K |
